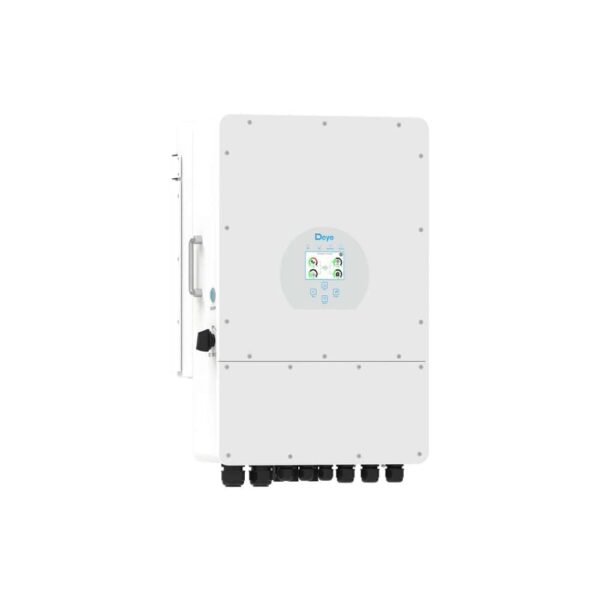

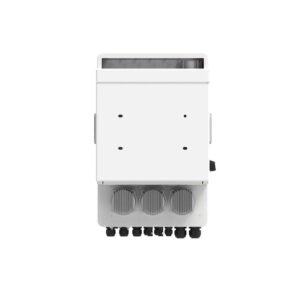

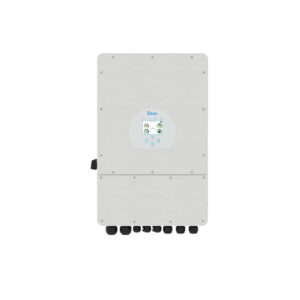

12kw Deye Hybrid Inverter (Single Phase)

Description

SUN-12K-SG02LP2-EU-AM3

Technical Specifications

• Battery Input:
  • Voltage Range: 40-60V
  • Charging Strategy for Li-ion Battery：Self-adaption to BMS
  • Max Charging/Discharging Current: 250A
  • Inputs: 1
• PV String Input:
  • Max. PV Input Power: 6.5kW to 15.6kW
  • Max. PV Input Voltage: 500V
  • Start-up Voltage: 125V
  • MPPT Voltage Range:150-425V
  • Rated PV Input Voltage: 370V
• Efficiency:
  • Max Efficiency: 97.6%
  • European Efficiency: 96.5%
  • MPPT Efficiency: >99%
• Protection Features:
  • Comprehensive protections including DC polarity reverse connection, AC output overcurrent, overvoltage, short circuit, and thermal protection.
  • Surge protection of Type II for both DC and AC circuits.
• Environmental and Physical Specifications:
  • Operating Temperature: -40°C to +60°C with derating above 45°C
  • Humidity: 0-100%
  • Altitude: Up to 2000m
  • Noise Level: <45dB
  • Ingress Protection: IP65
  • Dimensions: 420mm x 670mm x 233mm
  • Weight: 35.6kg
• Communication and Monitoring:
  • Monitoring options include GPRS, WIFI, Bluetooth, 4G, or LAN.
  • Communication interfaces: RS485, RS232, and CAN.
